Floorplan - 2017 Coachmen RV Prism 2150 LE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $61,995
- List Price: $103,240
- Discount: $41,245
-
Sleeps 6
-
1 Slides
-
Bunk Over CabU Shaped Dinette
-
25ft Long
-
9,645 lbs

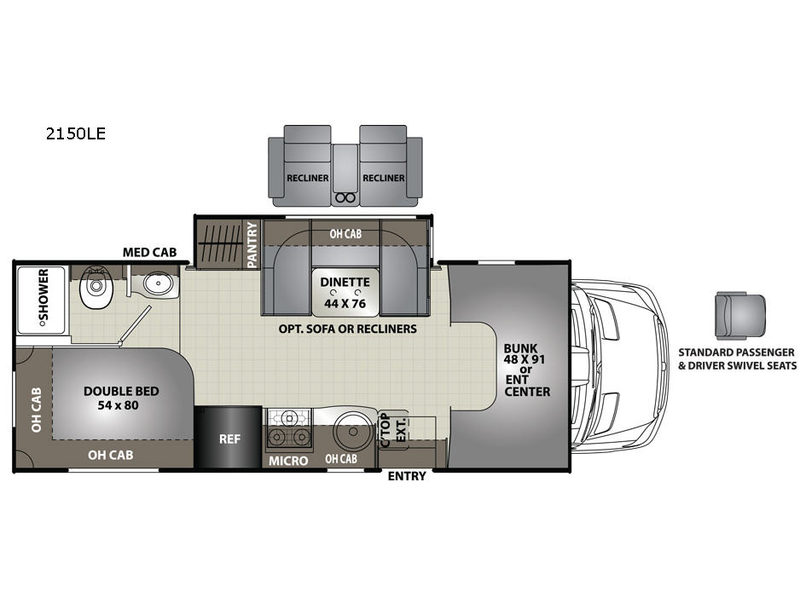

2150 LE Floorplan
Specifications
Sleeps | 6 | Slides | 1 |
Length | 25 ft | Ext Width | 7 ft 11 in |
Ext Height | 11 ft 7 in | Int Height | 6 ft 10 in |
Exterior Color | White | Hitch Weight | 3500 lbs |
GVWR | 11030 lbs | Dry Weight | 9645 lbs |
Cargo Capacity | 1385 lbs | Fresh Water Capacity | 50 gals |
Grey Water Capacity | 28 gals | Black Water Capacity | 28 gals |
Fuel Type | Diesel | Engine | 3.0L V6 |
Chassis | 3500 Sprinter | Horsepower | 188 hp |
Fuel Capacity | 26 gals | Wheelbase | 170 in |
Number Of Bunks | 1 | Available Beds | 1 |
Torque | 325 ft-lb | Refrigerator Type | Dometic Flush Mount Double Door |
Convection Cooking | Yes | Cooktop Burners | 3 |
Number of Awnings | 1 | Axle Weight Front | 4410 lbs |
Axle Weight Rear | 7720 lbs | LP Tank Capacity | 85 |
Water Heater Capacity | 6 gal | TV Info | Optional 24" LCD TV Coach, 13.5" Bedroom, 32" Front Ent. Center, 24" Exterior |
Awning Info | 16' powered | Gross Combined Weight | 12250 lbs |
VIN | WDAPF4CC3H9738637 |
Description
Step inside this Prism 2150 LE class C diesel coach by Coachmen RV and see how convenient traveling can be with your family. This unit features a single slide out for added interior space.
Enter behind the passenger seat up front and find a wide open interior with the u-shaped dinette slide fully extended along the road side. There is plenty of seating for everyone at mealtime, for games, or just time hanging out. You can choose an optional sofa or recliners in place of the dinette if you wish. You will also find a pantry and wardrobe within the slide out, and overhead cabinets above the dinette for plenty of storage.
To your left as you enter you will find everything you need to cook light meals and snacks on the move. There is a refrigerator, a three burner range with overhead convection microwave oven, and a round single sink for cleaning up. You will also find a handy counter-top extension for added prep space, plus overhead cabinets for storage.
This Prism also features a 48" x 91" bunk above the cab area for additional sleeping space, or you can choose the entertainment center instead with storage cabinets as well.
The rear of the unit provides sleeping for two with a 54" x 80" double bed including overhead cabinets along two sides. The opposite corner features a private bath including a shower and toilet. There is a separate sink just outside the bathroom door that features a medicine cabinet above for your personal things, plus so much more!
Features
Prism Interior
- Cab Over Bunk 48 x 90
- Child Safety Ladder w/Bunk Velcro Restraints
- Queen Bed 60 x 74 (2250/2200)
- Full Bed 54 x 80 (2150)
- Bedroom TV Jack & Backer for LCD TV (ex 2200)
- Bed Area 110V and 12V/USB Charging Station
- Power Sliding/Rotating 12V 32" TV/Stereo/Soundbar/Pantry (2200)
- Hardwood Slab Drawer Fronts
- Glass Insert Doors in Select Areas
- Dometic Flush Mount Double Door Refrigerator
- Composite Undermount Double Bowl Kitchen Sink w/Lid
- Single Child Tether at Forward Facing Dinette
- Interior Safety Grab Handle by Entrance Door
- Manual Battery Disconnect
- Powered Jack Wing TV Antenna
Prism Exterior
- Spare Tire
- Exterior Shower
- Exterior Solar Plug-in Connection
- Exterior TV Ready Area
- Water Panel w/City/Tank/Winterize/Water Tank Flush
- Power Double Entrance Step
- Roto Cast Rear Trunk Box/Metal Side Boxes
Prism Construction
- Steel Laminated Floor
- 2" Laminated Aluminum Exterior Walls
- CrownedLaminated TPO Roof
- Even Cool A/C Duct System
- Hellwig Swaybar - Enhanced Stability
Prism Lead Dog Value Package (Mandatory)
- High Gloss Color Infused Fiberglass Sidewalls
- Power Awning
- LED Entrance Light Strip
- Slide Out Topper Awnings
- 3.6 Onan LP Generator
- Stainless Steel Wheel Inserts
- Rear Ladder (N/A 2250LE)
- Hitch w/7-way Plug
- Exterior LED Marker Lights
- Rotating/Reclining Pilot/Co-Pilot Seats
- Touchscreen Radio w/Color Backup Camera
- Child Safety Net & Ladder
- Hardwood Cabinet Doors
- Day/Night Roller Shades
- Full Extension Ball Bearing Drawer Guides
- Atwood 3-Burner Cooktop w/ Oven
- Pop-Up Power Tower and 12V USB Charging Stations
- Interior LED Lights Throughout
Prism Options
- 24" LCD TV w/DVD - Coach (N/A 2200)
- 13.5" Bedroom TV w/built in DVD Player
- Front Entertainment Center - 32" TV, Stereo & 2 Speakers (N/A 2200)
- 32" LED TV/DVD (Mandatory 2200 LE)
- Exterior 24" TV w/DVD Player & 2 Speakers
- Navigation
- Upgrade Pilot Seats
- Carbon Fiber Dash
- Dual Auxiliary Battery Upgrade
- Convection Microwave
- Sofa and Pedestal Table
- Dual Recliners & Table (IPO Dinette)
- Upgrade Serta Mattress (2150 CB)
- Upgrade Folding Mattress (2250 DS/2200 FS)
- Onan 3.2 KW Diesel Generator & Auto Transfer Switch
- Exterior Windshield Cover
- Aluminum Wheels
- Heated Tank Pads
- Cabover Power Vent Fan w/Cover
- Camping Cozy Package - Dual Pane Tinted Windows, Tank Pads, Upper Tank Valves
- Side View Cameras
- 4-point Hydraulic Automatic Levelers
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
